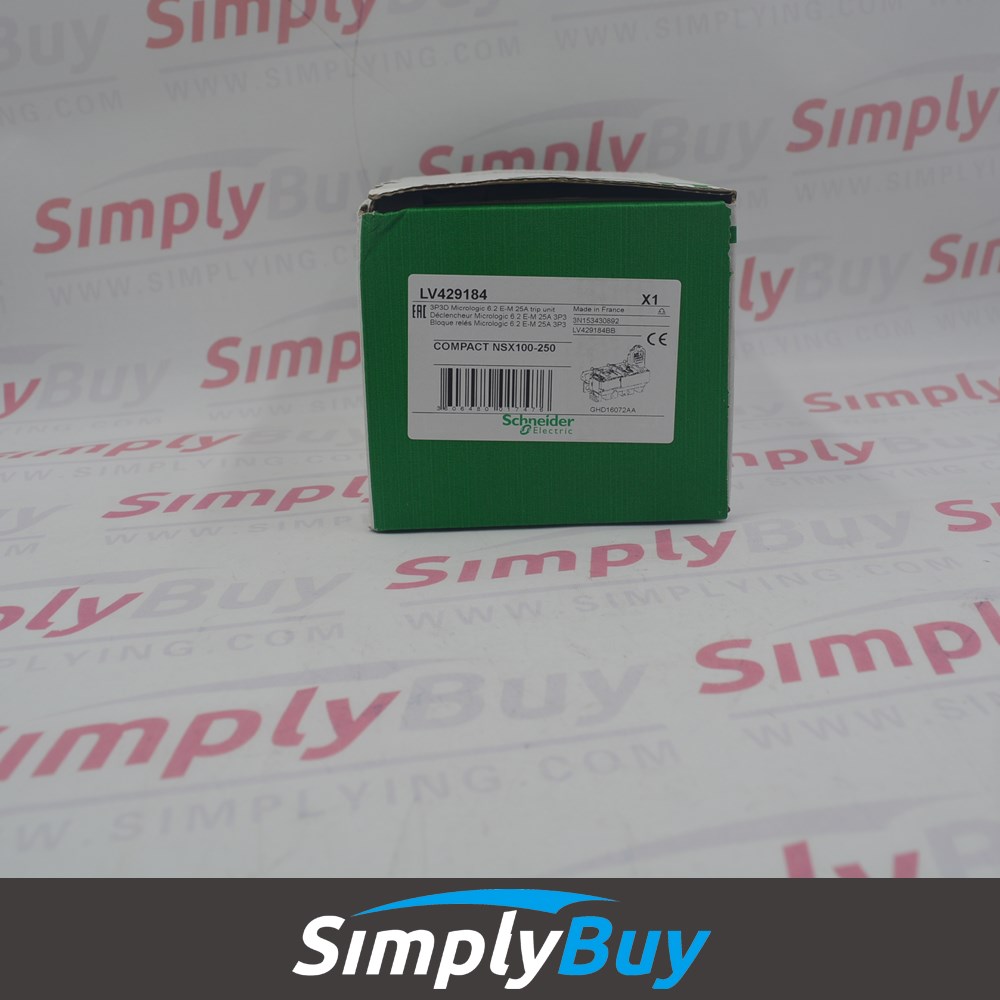

LV429184
Trip unit - Micrologic 6.2 E - M 25 A - 3 poles 3d
| Characteristics | |
| Main | |
| Range of product | NSX100...250 |
| Product or component type | Control unit |
| Circuit breaker application | Motor protection |
| Poles description | 3P |
| Protected poles description | 3t |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Trip unit name | Micrologic 6.2 E-M |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSIG |
| Trip unit rating | 25 A ( 65 °C ) |
| Protection type | Ground fault protection |
| Instantaneous short-circuit protection | |
| Overload protection (long time) | |
| Short time short-circuit protection | |
| Complementary | |
| Mounting mode | Fixed |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Motor tripping class | 10 |
| 20 | |
| 30 | |
| 5 | |
| Complementary motor protection | Current unbalance |
| Protracted starting time | |
| Stalled rotor | |
| Underload | |
| Long time pick-up adjstment type Ir | Adjustable |
| Long time pick-up adjustment range | 12...25 A |
| Long time delay adjustment type | Adjustable |
| [tr] long-time delay adjustment | 6.5 s 6 x Ir 5 |
| 13.5 s 6 x Ir 10 | |
| 720 s 1.5 x Ir 30 | |
| 5 s 7.2 x Ir 5 | |
| 480 s 1.5 x Ir 20 | |
| 38 s 6 x Ir 30 | |
| 30 s 7.2 x Ir 30 | |
| 26 s 6 x Ir 20 | |
| 240 s 1.5 x Ir 10 | |
| 20 s 7.2 x Ir 20 | |
| 120 s 1.5 x Ir 5 | |
| 10 s 7.2 x Ir 10 | |
| Thermal memory | 20 minutes before and after tripping |
| Short-time pick-up adjustment type Isd | Adjustable |
| [Isd] short-time pick-up adjustment range | 5...13 x Ir |
| Short-time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| Instantaneous pick-up adjustment range | 425 A |
| Ground-fault time delay adjustment type -tg | Adjustable |
| Ground-fault pick-up adjustment type | Adjustable |
| [tg] ground-fault time delay adjustment range | 0...0.4 s |
| [Ig] ground-fault pick-up adjustment range | 0.6...1 x In |
| Zone selective interlocking ZSI | With |
| Display type | LCD display |
| Type of measurement | Energy meter |
| Electrical data recording | Maintenance indicators |
| Environment | |
| Standards | EN 60947-2 |
| IEC 60947-2 | |
| NEMA AB1 | |
| UL 508 | |
| Product certifications | CSA |
| UL | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Part Number | LV429184 |
| Manufactuer | Schneider |
| Products | Moulded case breaker |
| Model | MCCB Control unit |
| Series | Merlin Gerin Compact NSX Micrologic 6.2 E |
| Description | Trip unit - Micrologic 6.2 E - M 25 A - 3 poles 3d |
| Condition | Schneider original new |
| Lead time | 1 week |
