Previous : LV431406 NSX250N
Next : LV430670 NSX160H

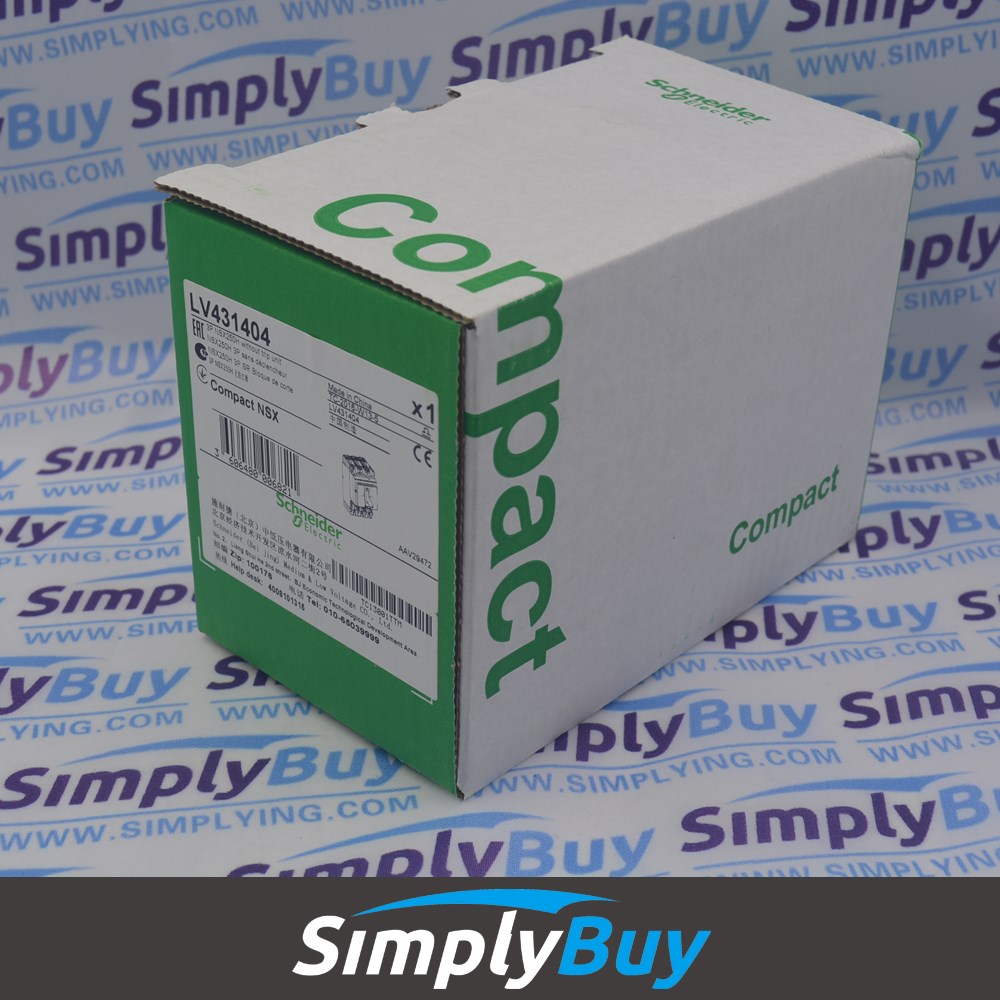

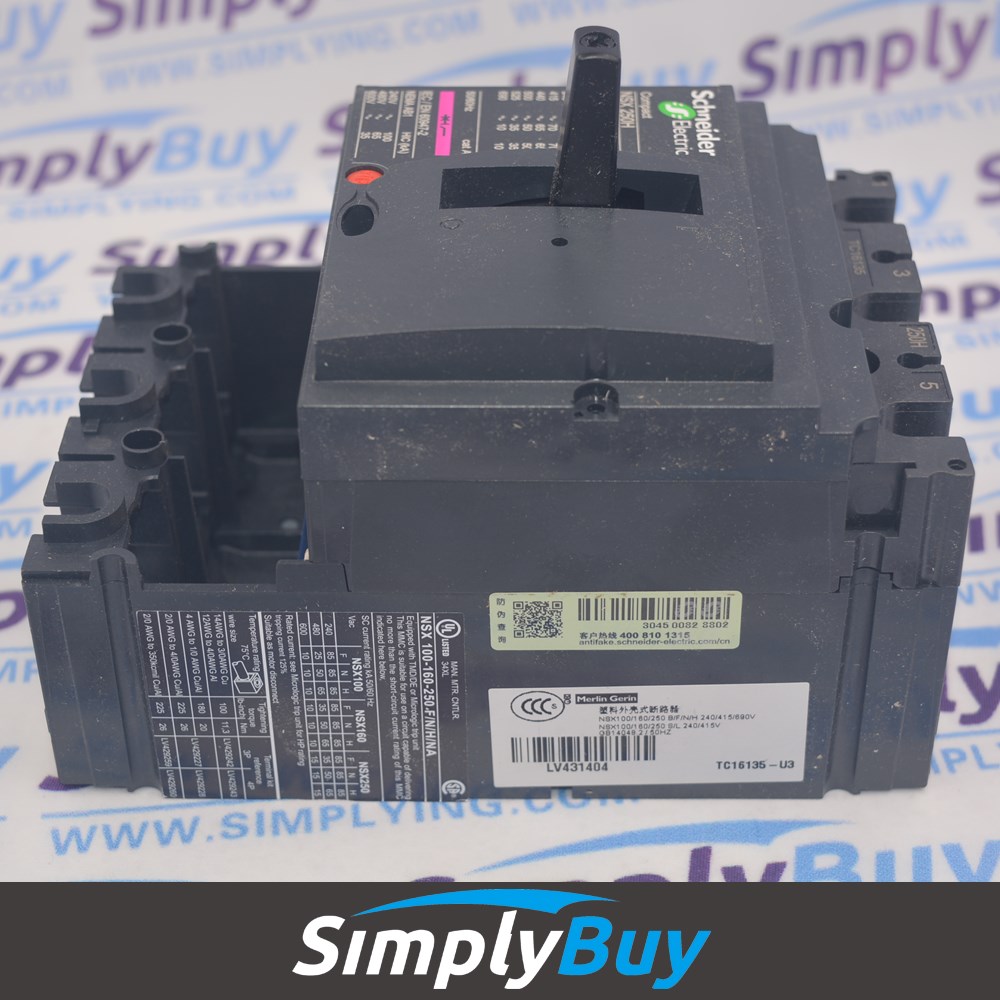

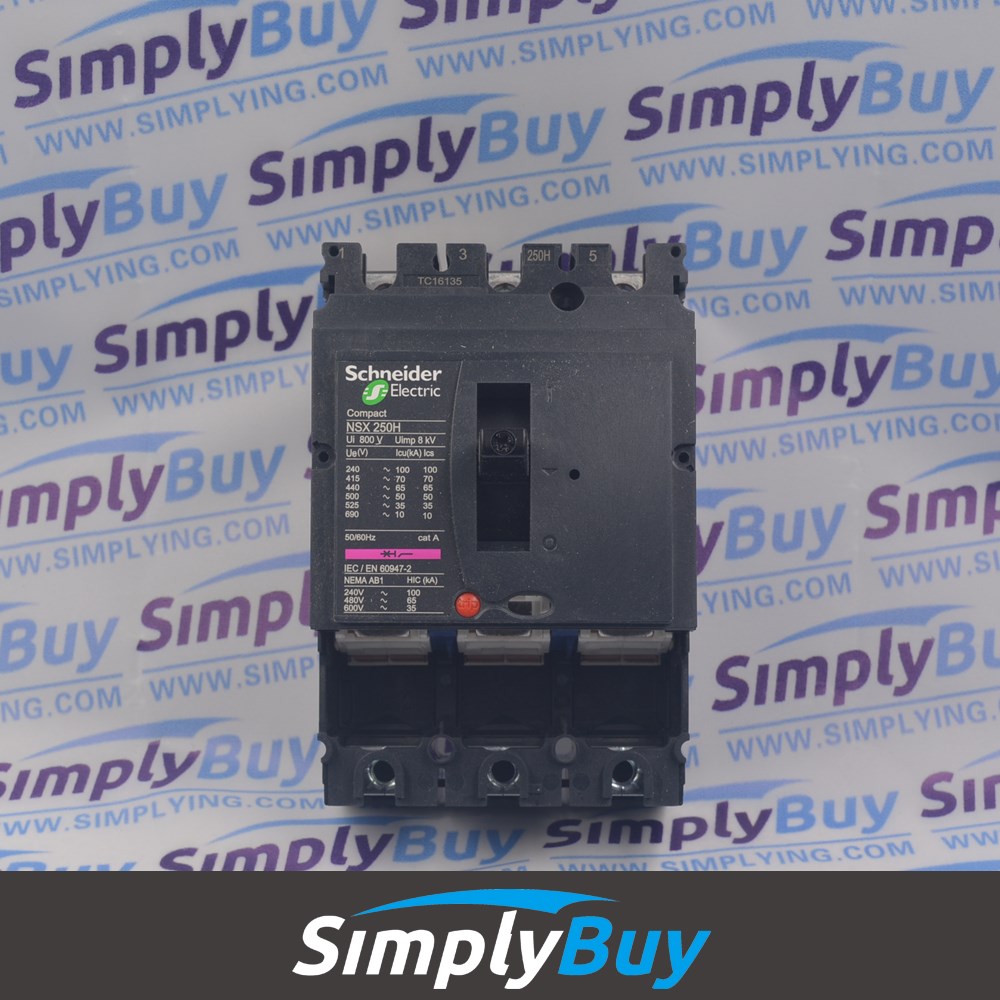

| LV431404 circuit breaker Compact NSX250H - 250 A - 3 poles - without trip unit |
| Characteristics | |
| Main | |
| Range of product | NSX100...250 |
| Product or component type | Basic frame |
| Device short name | Compact NSX250H |
| Circuit breaker name | Compact NSX250H |
| Poles description | 3P |
| [In] rated current | 250 A ( 40 °C ) |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | H |
| Breaking capacity | 15 kA at 600 V AC 50/60 Hz conforming to UL 508 |
| Icu 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Icu 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Icu 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Icu 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Icu 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Icu 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 65 kA at 480 V AC 50/60 Hz conforming to UL 508 | |
| 65 kA at 480 V AC 50/60 Hz conforming to NEMA AB1 | |
| 35 kA at 600 V AC 50/60 Hz conforming to NEMA AB1 | |
| 100 kA at 240 V AC 50/60 Hz conforming to NEMA AB1 | |
| 85 kA at 240 V AC 50/60 Hz conforming to UL 508 | |
| [Ics] rated service breaking capacity | Ics 70 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Ics 65 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 50 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 35 kA 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 100 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 10 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Yes conforming to EN 60947-2 | |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Complementary | |
| Control type | Toggle |
| Mounting mode | Fixed |
| Mechanical durability | 20000 cycles conforming to IEC 60947-2 |
| Electrical durability | 5000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 |
| 20000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 | |
| 10000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 | |
| 10000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 | |
| Environment | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Part Number | LV431404 |
| Manufactuer | Schneider |
| Products | Moulded case breaker |
| Model | NSX MCCB |
| Series | Merlin Gerin Compact NSX |
| Description | circuit breaker Compact NSX250H - 250 A - 3 poles - without trip unit |
| Condition | Schneider original new |
| Lead time | 1 week |
